Ajuste del soporte del tubo para xx39

**IMPORTANT: This article is valid only for model with the New Supply Tube Adjustable bracket. It is important to identify before proceeding.

Turn the faucet trim upside down and with a flashlight inspect the inside of the leg, you will see the bracket.

Model without the Adjustable Bracket Sin tornillos en el soporte ⇒ If you have this model, see article: Freestanding Tub Filler reinstall procedure

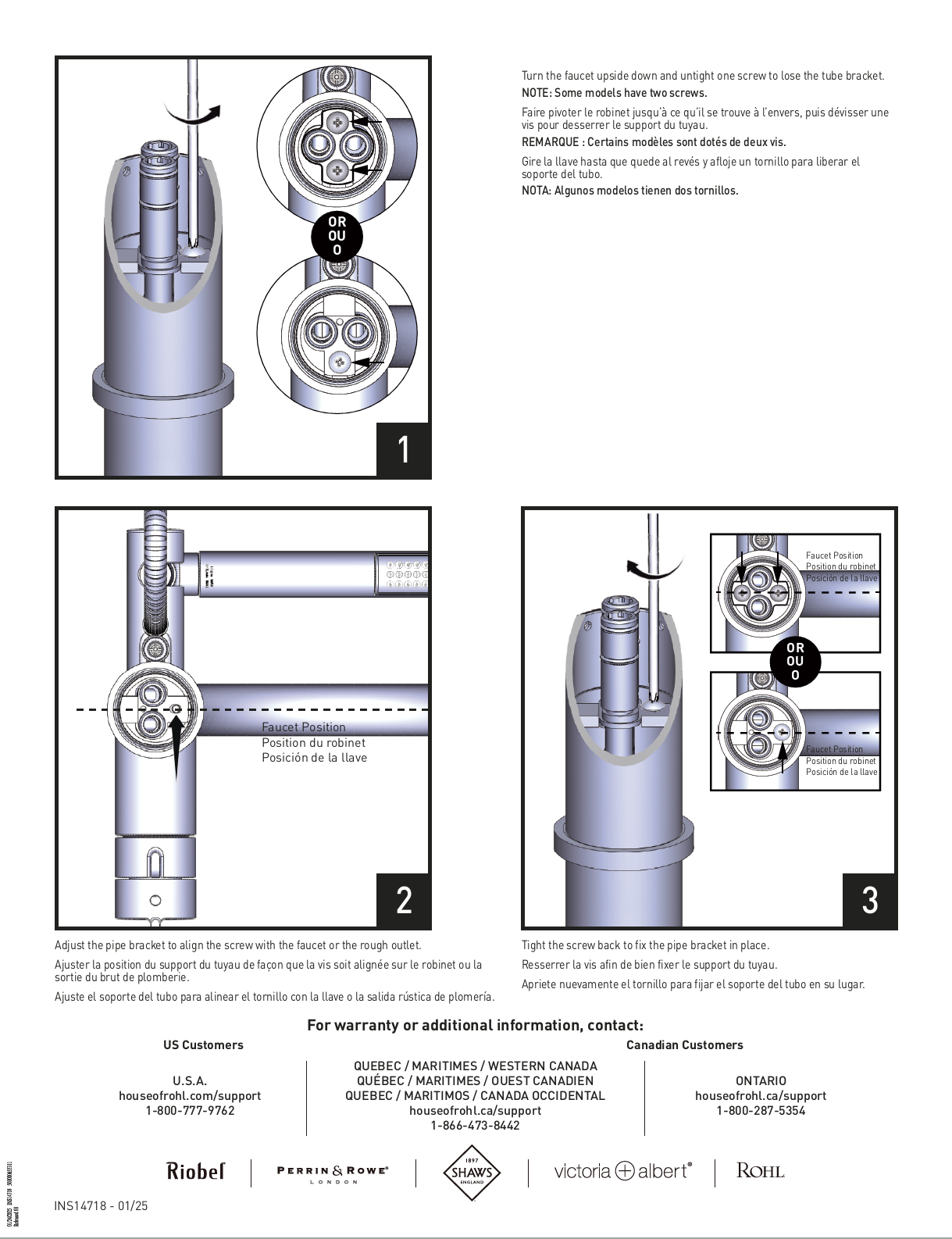

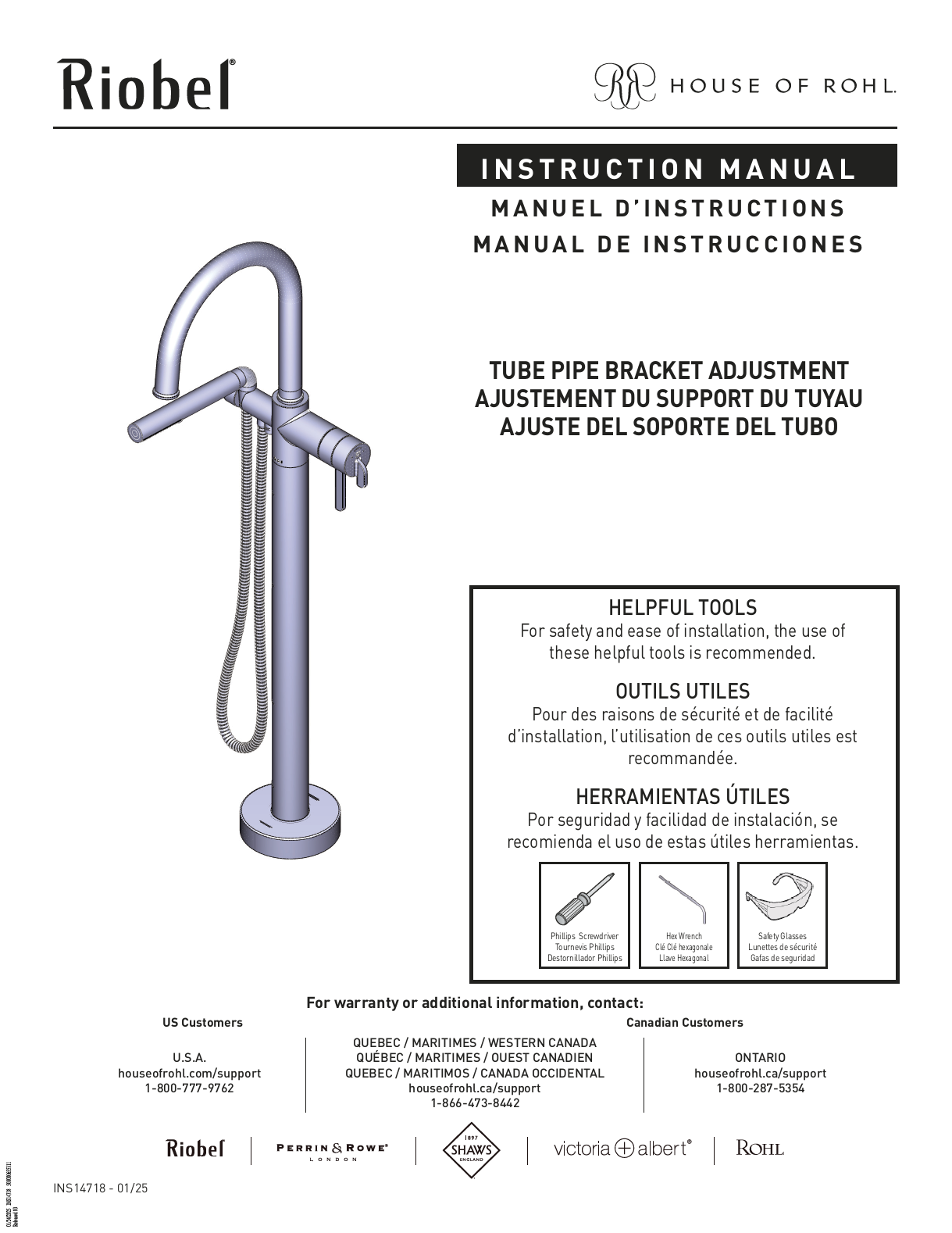

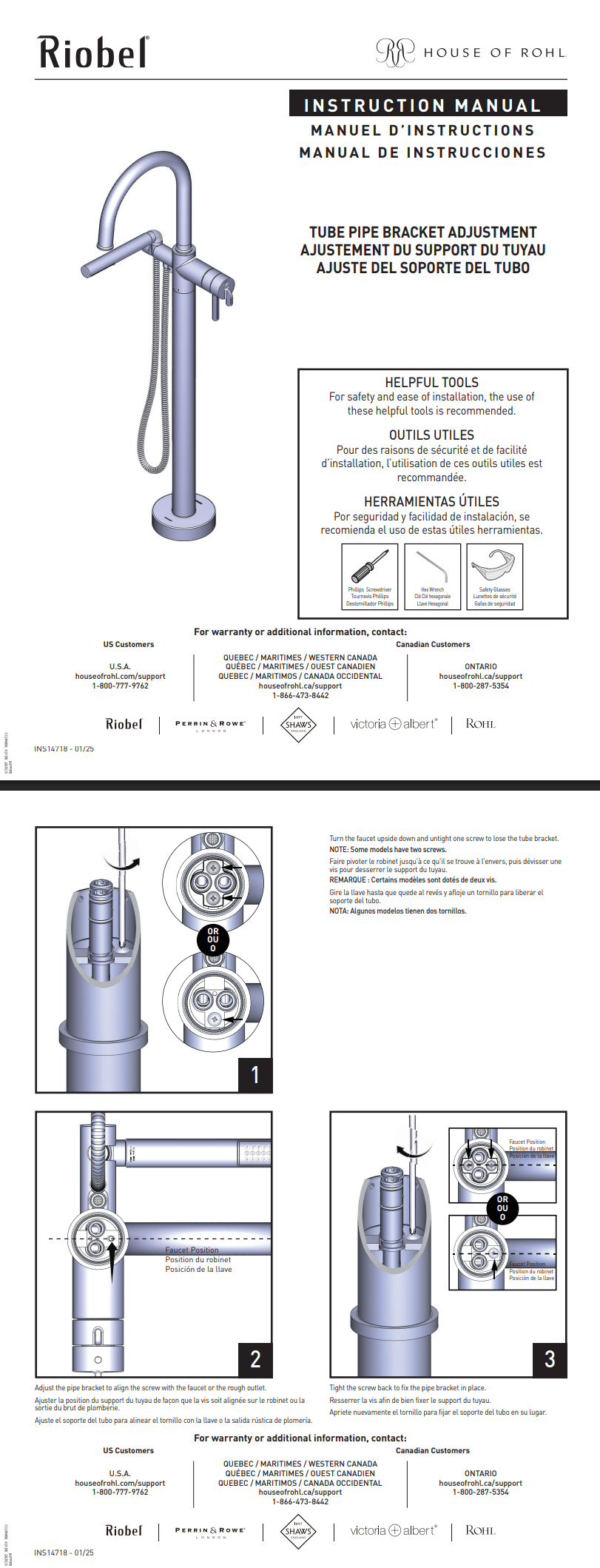

Model with the Adjustable Bracket Se verán 1 u 2 tornillos como se muestra en la flecha amarilla ⇒ If you have this model, see Instruction manual INS14718 below. It can also be seen as a PDF here

+
